Metal Lath

Packaging Details:	Water Proof Paper, Wooden Case And Pallet
Supply Ability:	2000000 Piece/Pieces per Week
Delivery Time:	15 Days
Port:	Tianjin Xingang

Category: Metal Rib Lath Tags: flat rib lath, formwork rib mesh, hy rib lath, metal lath, rib lath, rib lath stucco, ribbed metal lathing

OVERVIEW

Advantage: directly manufacturer
Certificate : ISO9001:2008, CE, SGS

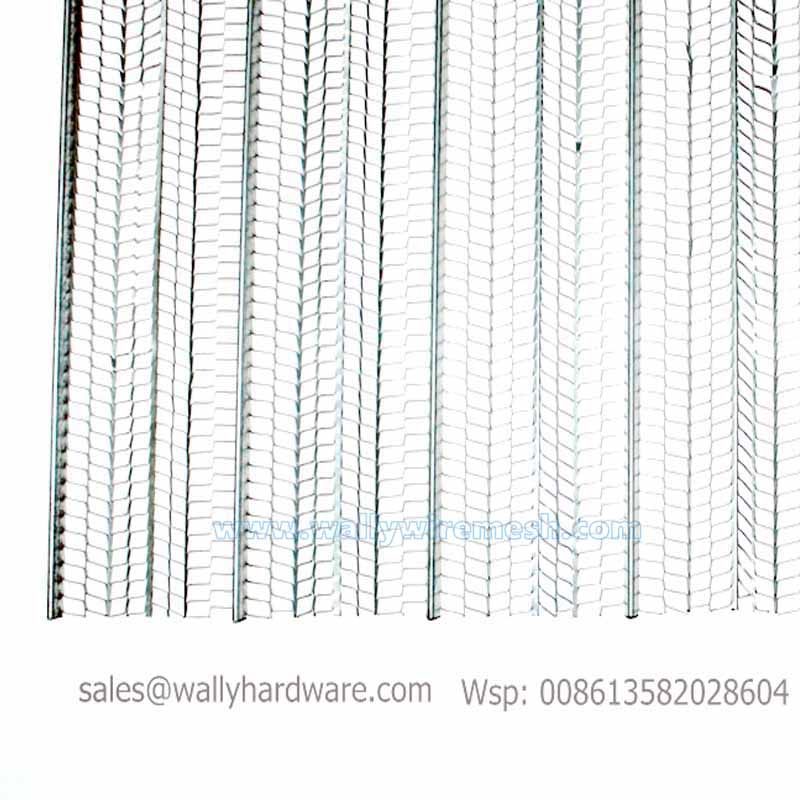

Metal Lath

Metal Lath, It is a metal lath with ribs at intervals to increase its rigidity. There have several uses within the building trade. Expanded metal can be used as a superior substitute for rib lath. It is an ideal material used as background for plaster, tender, stucco application in construction for ceilings. Expanded metal can also be used in this way. Rib lath can be used in construction, for bridges, marine engineering works and sewage system as can expanded metal.

Material: Galvanized cold-rolled steel strip
Area of use: Inside ; Outside ; New build ; etc.

RIBBED EXPANDED METAL/FIXING TECHNOLOGY

Rib Height	Rib Distance	Material thickness	Weight kg/m2	Sheet Size	Sheet per Pallet
4mm	100mm	0.20mm	0.61	2500x600mm	1000
10mm	100mm	0.3mm	1.17	2500x600mm	700
10mm	100mm	0.4mm	1.66	2500x600mm	600
10mm	100mm	0.5mm	1.86	2500x600mm	500
8mm	150mm	0.3mm	1.17	2500x600mm	700
8mm	150mm	0.5mm	1.86	2500x600mm	500

Rib Height	Rib Distance	Material thickness	Weight/sq.yd(lbs.)	Sheet Size	Sheet per Pallet
3/8″	100mm	0.4mm	2.75	27″x97″	500
3/8″	100mm	0.5mm	3.40	27″x97″	500

We also produce stucco wire netting, rabbit fence, hardware cloth, chain link fence, deer fence, field fence
Most of our product are for export, well sold in the USA, Germany, Europe, Canada, Africa and other countries and regions. Our experienced staff can produce wire mesh processed products according to our customers’ demands.

CLICK HERE COME BACK TO HOMEPAGE

Your Wire Mesh Products Expert in China

Keywords : rib lath, formwork rib mesh, hy rib lath, metal lath, rib lath stucco, ribbed metal lathing,expanded metal lath

Material	Hot dipped galvanized steel, Stainless steel
Thickness	0.2mm, 0.3mm, 0.35mm, 0.4mm, 0.5mm
Rib Height	4mm, 8mm, 10mm
Kg/m2	1.16kgs, 1.36kgs, 1.66kgs, 1.93kgs
Width*Length	0.6mx2.5m, 27"x97"
