1005050cm Galvanized Welded Gabion

$10.00 – $13.00

Packaging Details:	Water Proof Paper, Wooden Case And Pallet
Supply Ability:	2000000 Piece/Pieces per Week
Delivery Time:	15 Days
Port:	Tianjin Xingang

SKU: N/A Category: Welded Gabion Tags: gabion, gabion basket, gabion mesh, galfan gabion mesh, hesco barrier, retaining gabion wall, rock gabion, welded stone gabion box

OVERVIEW

Advantage: directly manufacturer
Certificate : ISO9001:2008, CE, SGS

Retaining Gabion Wall, Welded Stone Gabion Box

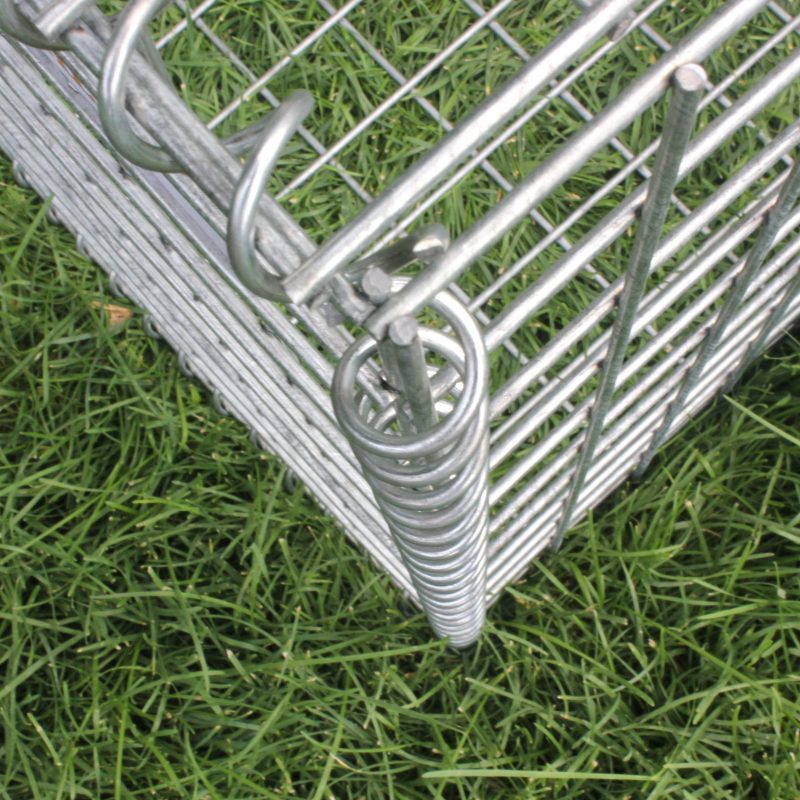

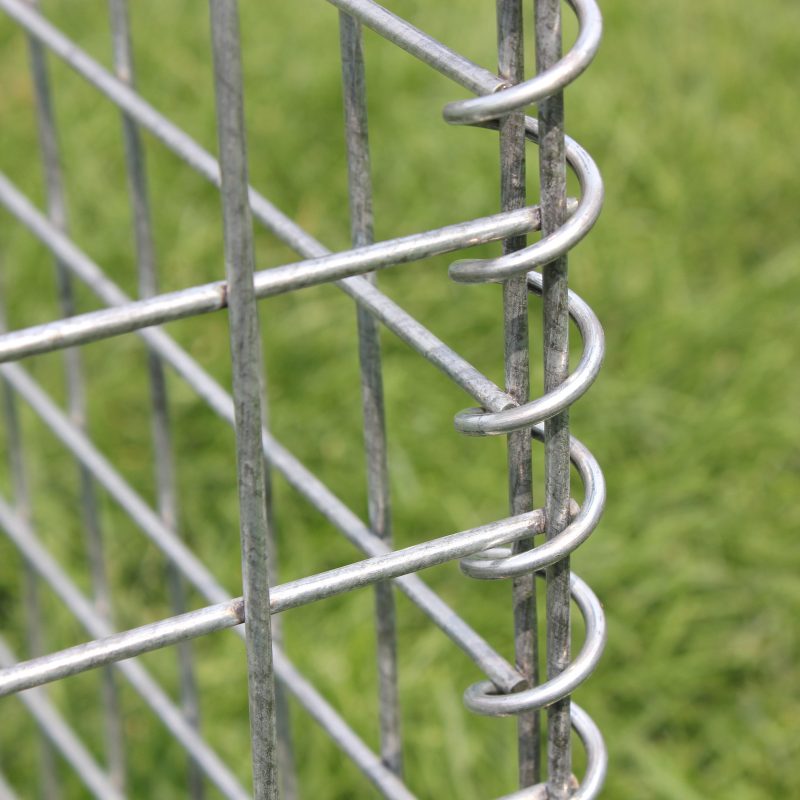

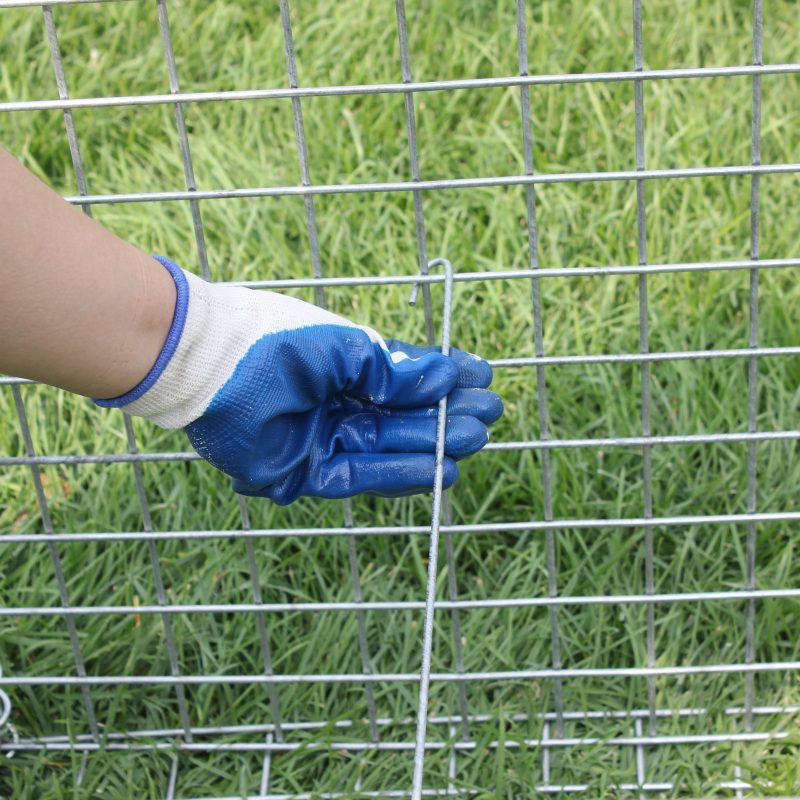

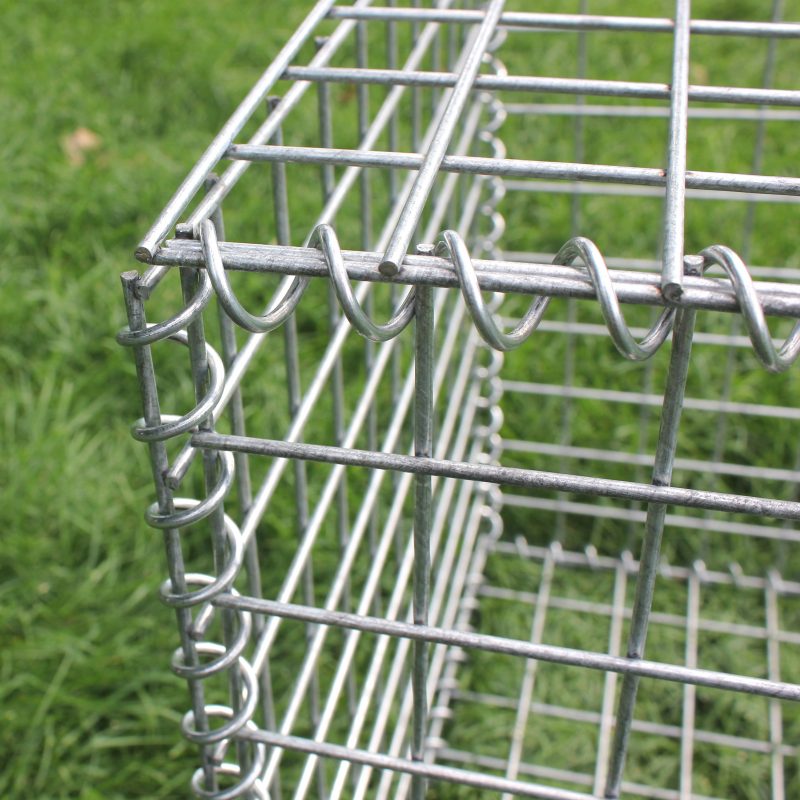

Galvanized Welded Gabion ,Gabion Box,Welded gabions are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.

Joining: welded gabion box should be provided with lacing wire for site assembly, which should be? of minimum wire diameter 2.2mm for final joining.

Common Specification:

L x W x D (cm)	Diaphragms	Capacity (m3)	Mesh size (mm)	Standard wire dia. (mm)
100x30x30	0	0.09	50 x 50 75 x 75 100 x 50 200 x 50	Heavily Galvanized zinc coated wire 2.20, 2.50, 2.70, 3.00, 4.00, 5.00
100x50x30	0	0.15
100x100x50	0	0.5
100x100x100	0	1
150x100x50	1	0.75
150x100x100	1	1.5
200x100x50	1	1
200x100x100	1	2
300x100x50	2	1.5
300x100x100	2	3
400x100x50	3	2

Other specifications can be customized, please contact us.

Application for Retaining Gabion Basket, Gabion Wall, Welded Stone, Gabion Box

FAQ

Q: Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for OVER 15 years.
Q: Do you have ISO & CE standard certificate ?
A: Yes, our all of wire products have pass CE Europe Certificate , click here for checking
Q: How can I get a quoation ?
A: The specification , order quantity, etc.
Q: How about the delivery
A: Generally, the time of mass production depends on the quantity 25 -30 days.

We also produce gabion box, gabion basket , gabion wall , gabion mattresses, hesco barrier etc
Our experienced staff can produce wire mesh processed products according to our customers’ demands.

CLICK HERE COME BACK TO GABION

Your Wire Mesh Products Expert in China

retaining gabion wall, welded stone gabion box, gabion basket, gabion, hesco barrier , gabion mesh, rock gabion,galfan gabion mesh, Hebei Wally Group

Material	Hot dipped galvanized, PVC coated wire, Gal-fan coated, Stainless steel wire
Aperture	60x80mm, 80x100mm, 100x120mm, 120x150mm
Wire Diameter	3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm
Gabion Basket Sizes	1x1x1m, 1x1x0.5m, 2x1x1m, 2x1x0.5m, 3x1x1m, 3x1x0.5m, 4x1x1m, 4x1x10.5m
